SPDP

SPDP:

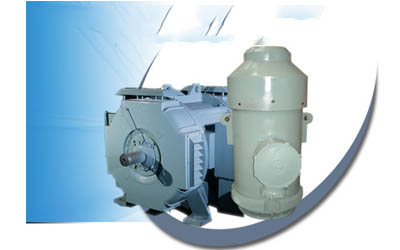

  • Squirrel cage /slipring motors are available in following series:C/CW/RS/RW:
  • Standard motors
  • RW series of large slipring motors cater to rolling mill/sugar segments.
  • Vertical Hollow Shaft Motors for irrigation purpose

Vertical Hollow Shaft LT Motors:

Features:

  • Non-reversible type
  • Bearings suitable for thrust load from pump
  • Application : Non-reversible Turbine Pump

Specification

  • Mounting – IS2254 / NEMA: G1-18-591
  • Performance – IS-325
  • Enclosure – SPDP
  • Protection – IP21 / 23
  • Ambient temp. – 45°C
  • Insulation – Class ‘F’
  • Phase – 3
  • Voltage – 415V+/-10% ( optional voltage up to 600V )
  • Frequency – 50Hz+/-3% ( optional 60Hz)
  • Duty – S1 ( Continuous )

Range:

  • Frame : CVH180 - CVH315
  • kW : 18.5 - 220
Read More

RW series of large slipring motors:

Design Features:

  • Stator wound with rectangular conductors rw 120 onwards
  • Bar wave winding for rotors rw105 onwards
  • Class ‘f’ insulation system - temperature rise class ‘b’ limit.class ‘h’ option available.
  • Rotor overhang banding with resiglass tape.
  • Forced ventilation system (ic01) through ven holes in stator slots.
  • High pull out torque
  • Designed to withstand normal thermal abuses at rolling mills, sugar plants

Frame Size

  • RW89-RW168 (CONVENTIONAL FRAME)
  • KCW450L-KCW560L (IEC FRAME)
  • Output : 75 KW-1100KW
  • Pole : 4 POLE-10 POLE
  • CONSTRUCTION : STANDARD-CAST IRON OPTIONAL - M.S., FABRICATED
